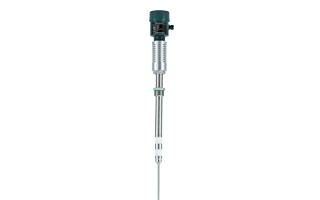

PWFR213

Should use:

liquid, solid material switch quantity measurement

Length:

standard type: (350/500)mm

Customizable :(500~3000)mm

Medium temperature： (180 ~ 500 ℃)

Probe material: Stainless steel, ceramics

Connection: G1?＂Athreads; The flange

Power supply: 24V DC/8A；220V AC/5A

Relative humidity: ≤85%

Output signal: two sets of normally open and normally closed contacts

Contact capacity: 24V DC/8A; AC 220 v / 5 a

Delay time: 0 ~ 99S(adjustable)

Protection grade: IP67

Explosion-proof grade: Exd IIC T6 Gb

Installation: top mounting and side mounting
