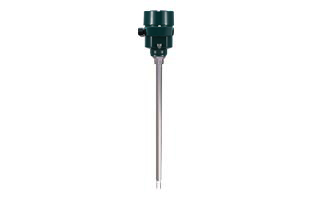

PWAVE212

Characteristic:

free from the influence of dielectric constant, steam and eddy current

Use:

liquid point measurement

Measurement range :(50 ~ 4000) mm

Process connection: screw thread, flange

The process temperature: conventional type: (to 50 ~ 150 ℃)

High temperature type: (to 50 ~ 250 ℃)

Process pressure :(-0.1 ~ 1.6) MPa

Frequency range: about 1200Hz

Output signal: two sets of normally open and normally closed contacts

Contact capacity: 24V DC/8A; AC 220 v / 5 a

Explosion-proof grade: Exd IIC T6

Protection class: IP 67
